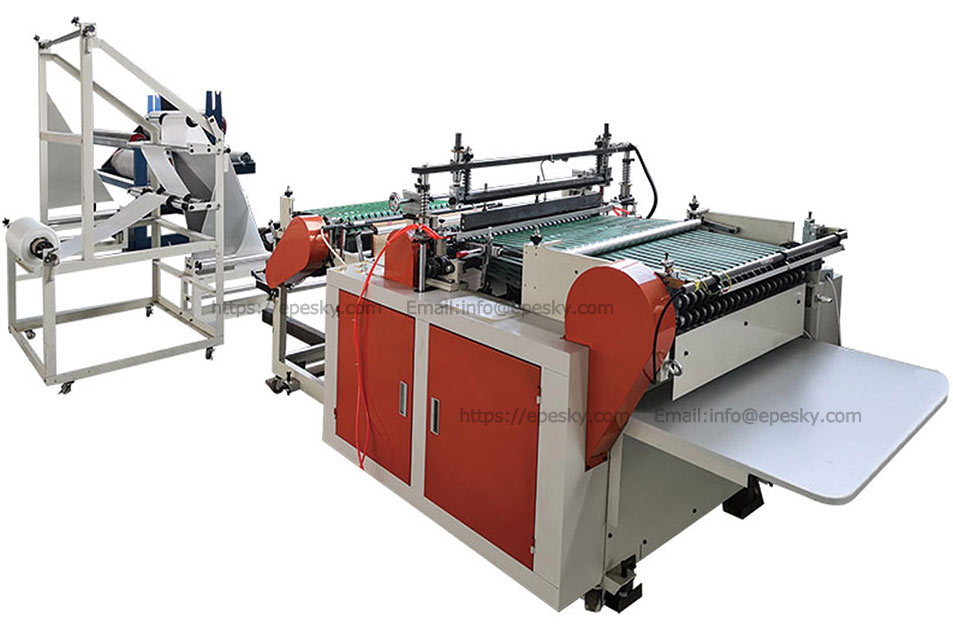

EPE Bag Making Machine for Protective Foam & Bubble Cushion Bags

An EPE bag making machine converts roll‑fed expanded polyethylene sheet—plain, film‑laminated or combined with air‑bubble film—into finished protective bags. The line unwinds the foam roll, folds or registers the web, heat‑seals the longitudinal/side seams, cuts to length, and stacks or delivers bags for electronics, appliances, glass, hardware, cosmetics and e‑commerce fulfillment. For plants already running EPE sheet extrusion or bubble film lines, a bag maker turns roll stock into higher‑margin finished pouches without manual cutting and taping.

How the line runs

1. Unwind – EPE or EPE＋bubble roll on shaftless/shafty stand with tension or EPC edge control; multiple rolls for combined structures.

2. Fold/register – Triangle folder or turn‑bar forms center fold/side fold; photocell reads print mark for fixed length and pattern alignment.

3. Seal – PLC sets independent temperature on each bar; pressure and dwell match foam thickness. Side‑seal, bottom‑seal or three‑side‑seal tooling depends on bag style.

4. Cut – Hot‑knife or combined heat‑seal/cut; cold‑knife option for certain bubble/thin webs to keep edges neat. Length controlled by encoder/PLC, not manual guess.

5. Optional finishing – Tape applicator for self‑seal mailers, punch for hanging packs, printer for lot/logo, stacker/counter for carton packing.

6. Output/QA – Count by batch, alarm at preset quantity, sampled seal‑peek/tear check; roll change without full re‑recipe on stored SKUs.

Applications that convert roll stock into orders

• Electronics/accessories – EPE or bubble pouches for phones, tablets, drives, cables, small appliances; anti‑static masterbatch available upstream.

• Appliance & white‑goods – thicker EPE bags for panels, racks, remotes, glass trays; flap or tape‑closure mailers.

• Glass/ceramics/crafts – bubble＋EPE laminated bags for scratch‑prone surfaces; three‑side seal for enclosed protection.

• Hardware & automotive parts – grease‑resistant laminated EPE bags, gusseted bags for fittings, small stamped parts.

• E‑commerce fulfillment – self‑adhesive EPE/bubble mailers, variable‑length protective pouches, printed logo/return address window optional.

• Cosmetics & pharma auxiliaries – clean‑cut EPE pouches for bottles/boxes; validate material/food‑contact claim only if upstream film is approved.

How to specify the quotation

Ask buyers for these six inputs; it prevents “send price list” replies that never close.

1. Web construction – plain EPE gsm/thickness, film‑laminated, HM‑laminated, or EPE＋bubble; roll width and max diameter.

2. Bag style – flat, side seal, three‑side, bottom seal, envelope/flap, gusset, self‑adhesive tape, zip optional.

3. Size program – min/max bag width and length, fixed retail lengths or random; pieces per shift/day.

4. Seal requirement – peel strength, appearance (no burn/compression), cold‑storage/export handling, print registration.

5. Options – punch, printer, stacker, EPC, slitting/trim recovery, bilingual HMI, remote access.

6. Plant data – voltage/frequency, compressed air, workshop length, operator count, destination port/Incoterm, certifications required.

Example: “Plain EPE 2 mm, 300×400 mm, side‑seal, 10,000 pcs/shift, no print, 380V/50Hz, Nigeria” → mid‑width servo side‑seal model, photocell length, single seal bar set for 2 mm, manual stack.

Example: “EPE 1 mm ＋ bubble 3 mm, 250×300 mm mailer, flap＋tape, logo print, 20,000 pcs/day, 440V/60Hz, USA” → combined‑web sealer with turn‑bar fold, tape unit, print registration, auto counter/stacker, FAT on customer roll.

FAQ for EPE bag making machine

What is an EPE bag making machine used for?

It converts roll‑fed EPE foam, film‑laminated EPE or EPE＋bubble web into protective bags for electronics, appliances, glass, hardware and e‑commerce shipping. Depending on tooling, it produces flat, side‑seal, three‑side‑seal, bottom‑seal, envelope/flap and self‑adhesive mailer bags.

What foam thickness and materials can it handle?

Plain and laminated EPE from about 0.5–10 mm is commonly supported; bubble film around 3–5 mm is supported on combined models, with wider bubble on request. Material compatibility depends on seal bar type, pressure and dwell, so send a sample roll for FAT rather than quoting from thickness alone.

What production speed can I expect?

Compact automatic EPE bag machines are often referenced at 20–120 pcs/min; EPE/bubble side‑seal models at 20–130 pcs/min. Actual output depends on bag width/length, foam thickness, number of seal bars, tape/print options and cooldown, so quote pieces per shift from a sample run.

Can EPE bag making machine make self‑adhesive mailers and flap bags?

Yes. Flap/envelope construction, online adhesive tape and peel‑strip options are available on suitable horizontal/three‑side models. For e‑commerce, add photocell print registration, hole punch and automatic stacking to reduce pack‑out labor.

Does the machine need PLC and servo?

For consistent length on soft foam, PLC＋HMI with servo or controlled stepper pull is recommended; photocell tracking handles printed rolls. Entry semi‑auto models may use simpler controllers, but buyers running multiple SKUs should specify recipe storage to cut changeover time.

How many operators are required?

A basic roll‑to‑bag line can run with one operator for unwind, finished‑bag collection and QA. With auto stacker, tape, printing and multiple rolls, one supervisor can manage several machines per shift depending on bag weight and packing workflow.

Can EPE bag making machine connect to my EPE sheet or bubble line?

Yes, if widths, roll diameters and unwind heights are matched. Many plants place the bag maker after EPE extrusion/lamination or bubble film extrusion for inline roll feeding; discuss accumulator, tension and space layout before fixing the layout.

What after‑sales do you provide for export plants?

Sample run/FAT with customer foam where logistics allow, export packing, installation supervision, PLC/HMI training, English electrical/mechanical manuals, spare‑part list (seal bars, blades, photocell, servo/spare electronics), and remote troubleshooting. Publish only real certifications—CE/ISO or equivalent—and quote warranty, lead time and Incoterms per contract.
